Corn flour/grits milling machine



Corn flour/grit milling machine is a complete set of processing that uses corn as raw material to process corn kernels into corn flour and corn grits by cleaning impurities, removing germs, peeling, taking grits, grinding, milling machine, and sieving machine.

Corn flour/grits product introduction

Corn flour and corn grits are deep-processing products of corn, and their particle size and use are slightly different.

Corn flour is a fine powder that is ground from corn. It is usually used to make corn cakes, corn porridge, corn noodles, and other foods, and can also be used as a substitute for other flour. Because the particles are small, so they are easy to mix, stir and cook, and easy to digest and absorb people.

Corn flour/grits

Corn grits are larger grains of ground corn, usually coarser than corn flour and similar in size to a corn kernel. It is usually used to make food such as corn grits, corn grits bread, and corn grits vermicelli, and can also be used to feed poultry, livestock, and other animals. Due to the larger particles, the taste is chewy after cooking, so it is more suitable for food with a harder taste.

Corn grits and corn flour are golden in color, rich in nutritional value, and have different particle sizes. At the same time, corn flour and corn grits are the main raw materials for reprocessing enterprises such as food factories, alcohol factories, liquor factories, breweries, lactic acid factories, and corn sugar factories.

Process overview of corn flour/grits milling machine:

The corn flour/grit milling machine adopts peeling and degerming technology, which can be customized to produce corn flour and corn grits of different sizes according to customer needs.

The corn flour/grits milling machine adopts a fully automatic design, which has high production efficiency and can save labor and production costs. At the same time, the production process of corn flour/grit milling machines is reasonable, which can not only reduce energy consumption but also ensure the quality of corn products.

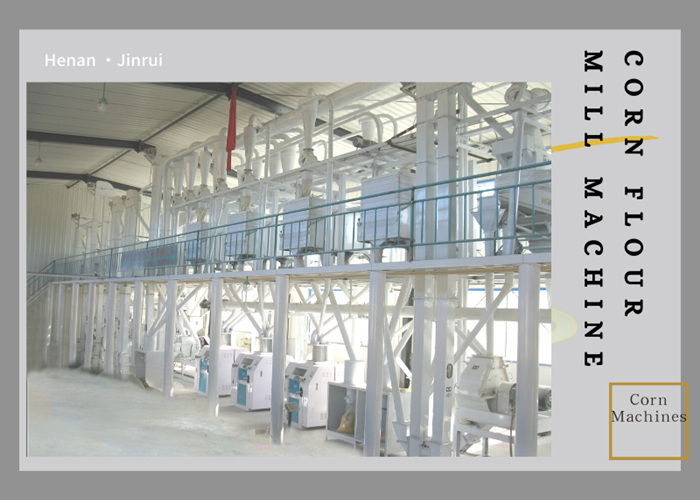

Corn flour/grits milling machine

The production process of corn grits/flour milling machine

The production process of corn flour/grit milling machine is: cleaning, peeling, germ removal, root removal, crushing, grit removal, grading, polishing, selection, packaging, etc. It mainly includes the raw material cleaning section, peeling and degerming section, grits making section, flour milling section, and measuring and packaging section. Below I will introduce the production section and process of the corn flour/grits milling machine in detail.

1. Raw material cleaning section: One sieve, one stone removal, and one magnetic separation are used, and various impurities in corn are cleaned out through the equipped winnowing system. The cleaning section mainly includes sieving equipment, stone removal equipment, magnetic separation equipment, and winnowing equipment.

2. Peeling and degerming section: two peelings, one polishing, two sievings, and one selection.

1) Peeling: Use a corn peeling and grits breaking machine to ensure that the skin and germ are removed cleanly, and the powder and skin are separated through an effective suction system;

2) Sieving: Use a sieving machine to separate materials according to different sizes and qualities;

3) Selection: According to the specific gravity of the material, the skin and broken embryos are separated from the material through the joint action of the fish scale plate and the airflow; this section needs to use the air separator.

Corn mill machine process

3. Grits making section: Adopt the process of refining grits, brushing powder, sieving, sorting, and suspending.

1) Refined grits: Crush the corn material into grits, and grind the endosperm (white spots) with less hardness into powder;

2) Brush powder: Separate the white powder in the corn material;

3) Sieving: Classify according to the size of the material through a flat sieve;

4) Suspension: According to the specific gravity of the material, the micro-skin is separated from the corn grits by airflow;

4. Flour milling section:Adopt multi-channel grinding and sieving process.

1) Grinding: The surface sand entering the milling machine is ground into powder;

2) Sieving: Separating the finely ground corn flour from the material through a flat sieve;

3). Metering and packaging section: The storage warehouse can reduce the amount of labor, and the metering and packaging can be done manually or electronically.

Technical indicators of corn flour/grits:

1. Product structure: corn grits, corn flour, corn husk

2. Product yield rate: (with pictures)

3. Finished product indicators

A. Corn flour fineness: 40-200 mesh (fineness of flour can be adjusted)

B. Sand content:<0.02%

C. Magnetic metal content:<0.003/kg

D. Moisture: storage type 13.5-14.5%

E. Fat content: 0.5—1%

F. Appearance and taste: uniform particles, golden color, smooth particles without edges and corners, fine powder, pure taste.

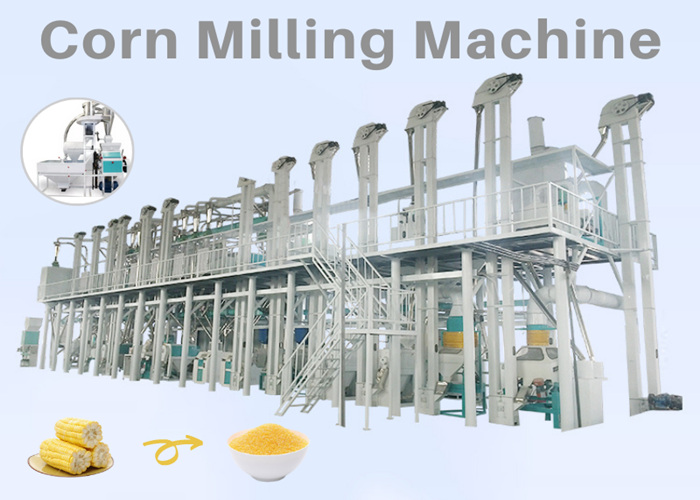

Corn milling machine

Corn flour/grits milling machine features:

1. The dry processing technology is adopted, the processing process is more hygienic, and the product quality and food safety of the finished corn grits and corn flour are guaranteed. At the same time, compared with the complete set of corn wet processing technology, the investment in equipment for moistening grain in the early stage and drying of finished products in the later stage is reduced;

2. The main components of the corn flour/grit milling machine are made of alloy materials that meet export standards, which not only ensures production efficiency but also takes into account the long-term stability of the equipment and saves maintenance costs for customers.

3. The streamlined modular design adopts the high-precision processing technology of clearing grain, two peelings, and one polishing, and the whole processing process realizes automatic operation.

4. The price of the equipment is reasonable. Compared with other corn flour/grit milling machines of the same tonnage, the investment is reduced by more than 50%, and it is 80% lower than that of foreign counterparts.
